24-piece cylinder head gasket set for the OM 636 engine in the Mercedes 170D, Da, Db, DS, SD, 180D, Db

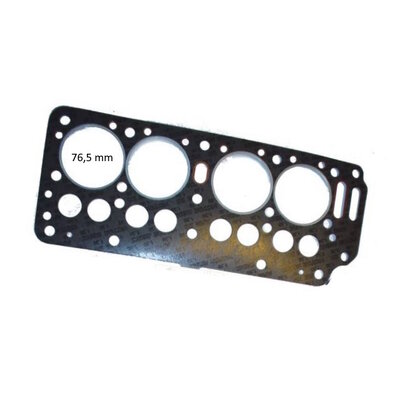

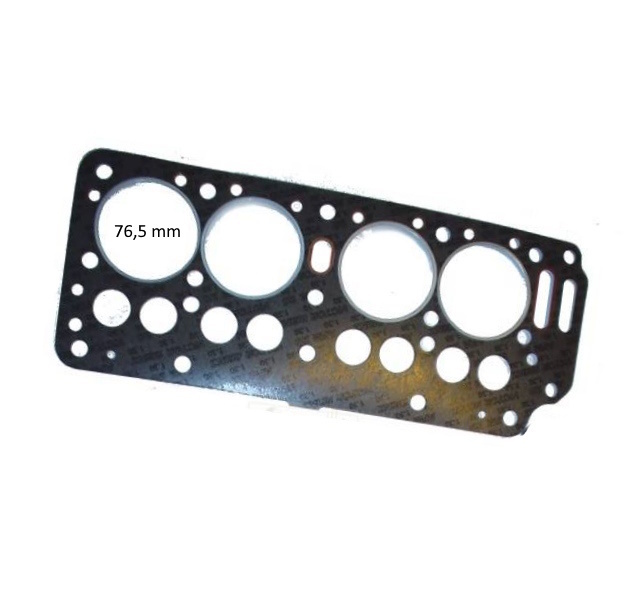

Thickness of the cylinder head gasket: 1.3 mm / diameter of the combustion chamber surround 76.5 mm
DB compare no .: 6365860090
Manufacturer: Victor Reinz GmbH

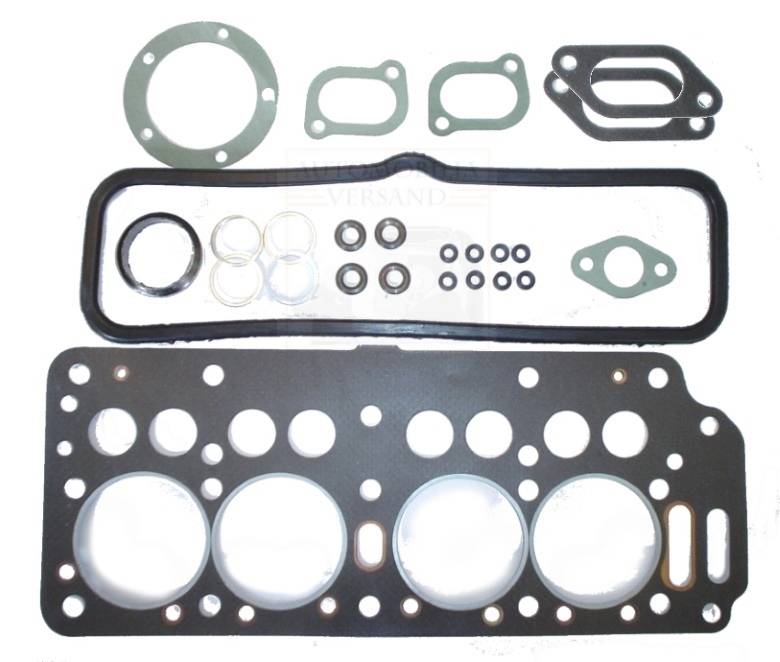

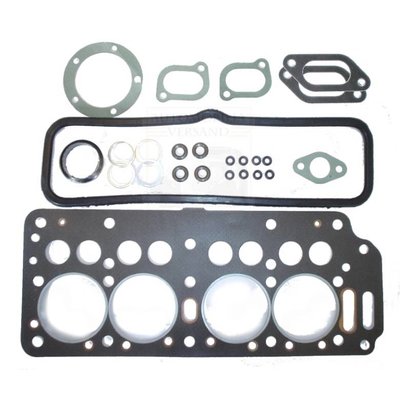

The following seals are included:
1 x cylinder head gasket DB Vergl.Nr .: 6360160620
4 x sealing ring for prechamber DB compare no .: 6360170119
1 x gasket cylinder head cover DB Vergl.Nr .: 6360160180
8 x sealing ring valve spring retainer DB Vergl.Nr .: 6360530060
4 x seal between nozzle holder and prechamber DB, compare no .: 6360170120
2 x gasket suction line and cylinder head DB Vergl.Nr .: 6361410179
2 x gasket exhaust manifold and cylinder head DB Vergl.Nr .: 6361420090
1 x sealing ring exhaust pipe to manifold DB Vergl.Nr .: 1534920181
1 x seal water pump DB Vergl.Nr .: 1532010080
1 x sealing flange cooling water outlet on the cylinder head DIN 71511
Group 1, engine
